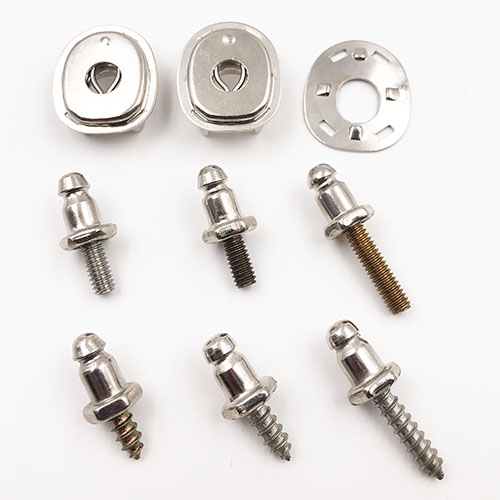

Lift-The-Dot Fastener Fabric to Hard Surface Socket & Stud Kits

Lift-The-DOT® fasteners also known as One-Way-Lift® are used in a wide range of applications in Automotive, Awning, Marine, Military, Tarps, Curtain and other market products. Directional locking fasteners can be used with variety of studs, fasteners lock on three sides and are opened by lifting the fourth side. Lift-The-Dot Fasteners are strong and heavy-duty Nickel or Black plated Brass fasteners can be used to attached Fabric to Hard Surface. Available in different length and style Prongs & Screws.

*This item is Nickel or Black plated Brass.

*Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN16205_and_LDBN163604-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 3/8" Self-Tapping Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 3/8"(9MM).

*LDBN16205_and_LDBN163606-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 1/2" Self-Tapping Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 1/2"(12.7MM).

*LDBN16205_and_LDBN163607-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 5/8" Self-Tapping Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 5/8"(15.9MM).

*LDBN16205_and_VL1636212-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 3/8" Machine Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 3/8"(9MM).

*LDBN16205_and_LDBN163624-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 3/8" Machine Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 3/8"(9MM).

*LDBN16205_and_LDBN163627-3PCKIT - Nickel Fabric to Hard Surface Standard Prongs Socket & 5/8" Machine Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 5/8"(15.9MM).

*LDBN16206_and_LDBN163604-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 3/8" Self-Tapping Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 3/8"(9MM).

*LDBN16206_and_LDBN163606-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 1/2" Self-Tapping Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 1/2"(12.7MM).

*LDBN16206_and_LDBN163607-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 5/8" Self-Tapping Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8, length 5/8"(15.9MM).

*LDBN16206_and_VL1636212-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 3/8" Machine Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 3/8"(9MM).

*LDBN16206_and_LDBN163624-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 3/8" Machine Stainless Steel Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 3/8"(9MM).

*LDBN16206_and_LDBN163627-3PCKIT - Nickel Fabric to Hard Surface Extended Prongs Socket & 5/8" Machine Brass Screw (3-pc Set) - Socket Prongs length 15/64" (6MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness). Screw size #8/32, length 5/8"(15.9MM).

*HOOVER-L6-PUNCH - Lift-The-Dot 4 Prong Socket Eyelet Installation Punch Tool - Used to punch 4 holes on the fabric for 4 Prong Socket fastener
