Lift The Dot Studs

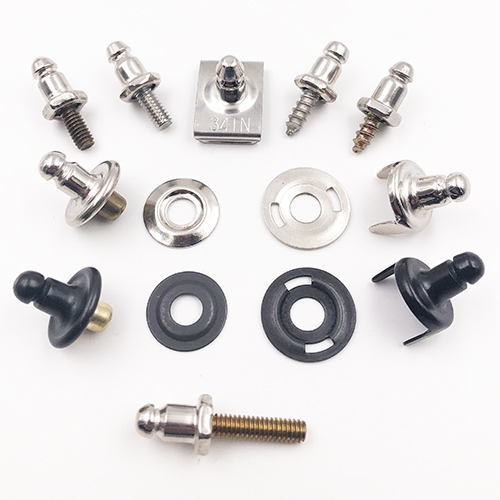

Lift-The-DOT® fasteners also known as One-Way-Lift® are used in a wide range of applications in Automotive, Awning, Marine, Military, Tarps, Curtain and other market products. Directional locking fasteners can be used with variety of studs, fasteners lock on three sides and are opened by lifting the fourth side. Lift-The-Dot Studs are strong and heavy-duty Nickel or Black plated Brass fasteners can be used with variety of Lift-The-Dot Sockets (sold separately) to attached Fabric to Fabric or Fabric to Hard Surface.

*This item is Nickel or Black plated Brass.

*VL-16366-12 - Lift-The-Dot Fastener Screw Stud Nickel With #8 X 3/8" Brass Self-Tapping Screw - Fabric to Hard surface applications. Screw size #8, screw length 3/8" (9.5MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN163604 - Lift-The-Dot Fastener Screw Stud Nickel With #8 X 3/8" Stainless Steel Self-Tapping Screw - Fabric to Hard surface applications. Screw size #8, screw length 3/8" (9.5MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN163606 - Lift-The-Dot Fastener Screw Stud Nickel With #8 X 1/2" Stainless Steel Self-Tapping Screw - Fabric to Hard surface applications. Screw size #8, screw length 1/2" (12.7MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN163607 - Lift-The-Dot Fastener Screw Stud Nickel With #8 X 5/8" Stainless Steel Self-Tapping Screw - Fabric to Hard surface applications. Screw size #8, screw length 5/8" (15.9MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*VL-16362-12 - Lift-The-Dot Fastener Screw Stud Nickel With #8/32" X 3/8" Brass Machine Screw - Fabric to Hard surface applications. Screw size 8/32" (6.35MM), screw length 3/8" (9.5MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN163624 - Lift-The-Dot Fastener Screw Stud Nickel With #8/32" X 3/8" Stainless Steel Machine Screw - Fabric to Hard surface applications. Screw size 8/32" (6.35MM), screw length 3/8" (9.5MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN163627 - Lift-The-Dot Fastener Screw Stud Nickel With #8/32" X 5/8" Brass Machine Screw - Fabric to Hard surface applications. Screw size 8/32" (6.35MM), screw length 5/8" (15.9MM). Stud installs to a hard surface with 23/64" (9MM) Socket Wrench.

*LDBN16349_and_LDBN16501 - Lift-The-Dot Fastener 2 Prong Stud Nickel With Washer (2-pc set) - Fabric to Fabric applications. Prongs length 5/16" (8MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness).

*LDBB16349_and_LDBB16501 - Lift-The-Dot Fastener 2 Prong Stud Black With Washer (2-pc set) - Fabric to Fabric applications. Prongs length 5/16" (8MM). Can be used for up to 3/32" (2.5MM) thick material (up to 5 layers based on the material thickness).

*LDBN16358_and_LDBN16509 - Lift-The-Dot Fastener Eyelet Type Base Stud Nickel With Washer (2-pc set) - Fabric to Fabric applications. Post length 13/64" (5MM). Can be used for up to 5/64" (2MM) thick material (up to 4 layers based on the material thickness). Stud can be installed with Pres-N-Snap #8 & #58 Die set.

*LDBB16358_and_LDBB16509 - Lift-The-Dot Fastener Eyelet Type Base Stud Black With Washer (2-pc set) - Fabric to Fabric applications. Post length 13/64" (5MM). Can be used for up to 5/64" (2MM) thick material (up to 4 layers based on the material thickness). Stud can be installed with Pres-N-Snap #8 & #58 Die set.

*LDBN16376 - Lift-The-Dot Fastener Windshield Stud Stainless Steel 3/4" Long Clip-On - Fabric to Windshield application. Designed to clip onto 3/4" (19MM) windshield molding. 9/16" (14MM) Wide.

*LDBN16377 - Lift-The-Dot Fastener Windshield Stud Stainless Steel 7/8" Long Clip-On - Fabric to Windshield application. Designed to clip onto 7/8" (22MM) windshield molding. 9/16" (14MM) Wide.

*HOOVER-71-PUNCH - Lift-The-Dot 2 Prong Stud Eyelet Installation Punch Tool - Used to punch 2 holes on the fabric for 2 Prong Stud fastener
